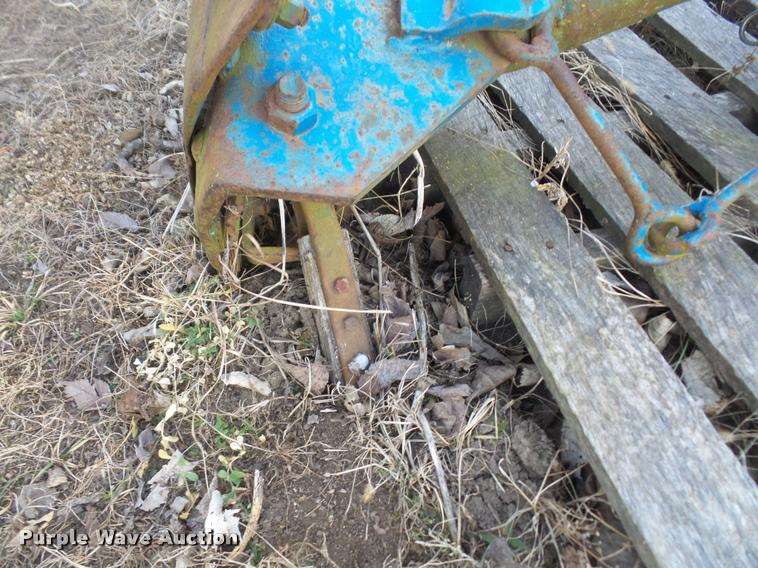

Ford 501 Mower Parts For Sale
Ford 501 Sickle Bar Mower Manuals Our manuals have Free Shipping and Guaranteed Lowest Prices. Parts, Owners and Service Manuals are typically available for your Ford 501 Sickle Bar Mower. Please see availability below. Which Manual Do I Need? There are 3 main types of Ford Sickle Bar Mower manuals, each with a specific purpose.
Some manuals combine types (i.e. Parts + Operators, etc.), but the basic function of the manual types remain the same and are as follows: • Service Manual (SVC) - The service manual (a.k.a. Shop manual or Repair manual) tells you how to take the Ford Sickle Bar Mower apart, fix it, and put it back together. It is written in the language of a mechanic and may include valuable detailed information such as specifications, torques, ranges, etc. If you are serious about repairs or restoring, you need the service manual. • Parts Manual (PTS) - The parts manual has exploded views of all parts on the Sickle Bar Mower giving great detail on assembly and disassembly.
G-218DH, G-218DH, C-IH, Kosch, NH, guard mowers, made in USA, 13.85. G-850, G-850, Ford, single malleable guard, mower OEM# 141009, 6.75.
It also includes a guide for ordering parts. It picks up where the service manual leaves off.
If you do your own repairs, you need the parts manual. • Operators Manual (OPT) - The operators manual (a.k.a. Owners manual) is the book that came OEM from the manufacturer when the Ford 501 Sickle Bar Mower was purchased. It gives the owner/operator instructions, shift patterns, capacities (anti freeze, crankcase, oil, hydraulic, etc.) and adjustment procedures (brakes, clutch, etc.). This book is a critical tool for operating and maintaining your machine. • Complete Kits - Get all the manuals for your 501 Sickle Bar Mower plus a few other perks and ensure you will not be missing critical information in the middle of your repair job.
See below for availability.
Pitman Arm The Ford 501 is equipped with a wooden Pittman arm, which acts as a connecting rod that converts the rotary motion of the mower’s pulley into the back-and-forth motion that drives the cutting bar. The sickle bar on the 501 can cut only when it is in a horizontal position. It cannot cut at an angle, such as 10 degrees above or below horizontal. Therefore, the unit cannot be used on ditches or hillsides. Because the arm is made of wood, it will degrade if the mower is stored outdoors.
You can prevent this by storing the unit inside, or removing the arm from the mower and storing it inside. Wobble Box The Ford 515 uses a wobble shaft drive instead of a Pitman arm. It is made of steel, making it durable and longer lasting than the Pitman arm. The wobbling action of the box allows the sickle to cut grass horizontally or at various angles above or below horizontal. Adjust the bar up to move over rocky terrain, or down to cut crops that have been beaten down by heavy wind. Damage Prevention Rocks and stumps can hide in tall grasses, causing damage to your mower.
To prevent this, the 501 is equipped with a safety that releases the sickle bar, so it swings backward when you hit a large object. If the cutting knives become jammed, the wooden Pitman arm breaks to prevent damage to the sickle. It’s much cheaper to replace the arm than to repair the cutting bar.
The 515 has a spring-operated breakback that swings back to prevent damage to the cutting bar and simultaneously lifts the bar. Forza motorsport 3 iso pcsx. The breakback is reset by backing up the tractor.
PTO The power take off (PTO) is what sends power from the running tractor engine to make the sickle bar cut. The 515 mower is rated to be operated at higher PTO speeds than the 501. For instance, when a 9-inch drive sheath is installed on the 515, the recommended PTO speed is 740. The same size sheath on the 501 has a recommended PTO speed of 670. Both PTO ratings recommend a 4-speed transmission tractor to be run in third gear.
